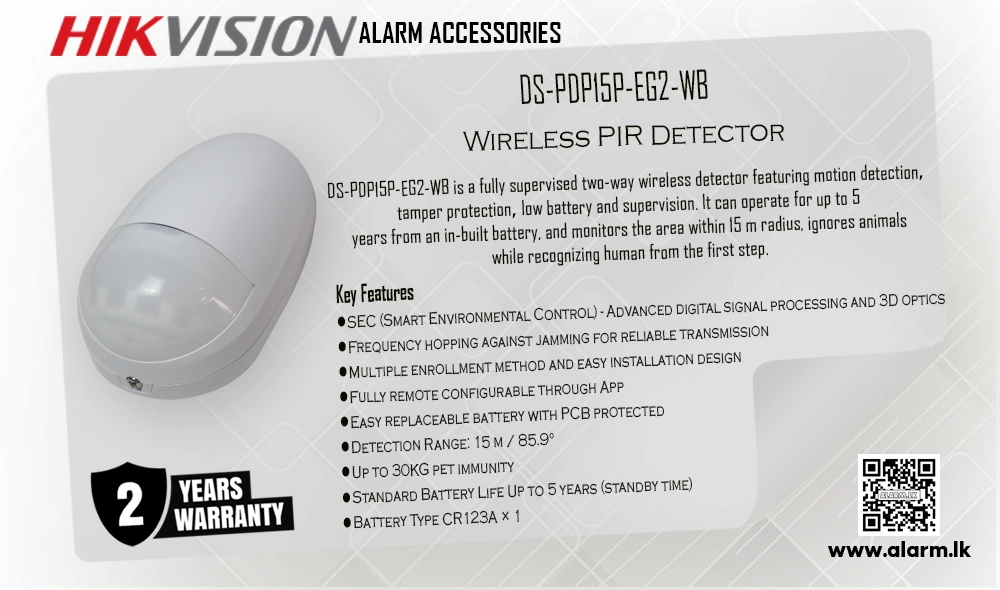

DS-PDP15P-EG2-WB

Datasheet: DS-PDP15P-EG2-WB

Quick Start Guide: DS-PDP15P-EG2-WB

User Manual: DS-PDP15P-EG2-WB

Detection

• Method: Passive Infrared
• Range: 15m
• Angle: 85.9°
• Zones: 52

Detection Performance

• Detectable Speed: 0.3～2m/s
• Sensitivity: High;Auto;Pet
• Pet Immunity: 30Kg
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front;Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue(Alarm)

Transmission

• TechnologyTri-X Wireless
• MethodTwo-Way RF Wireless
• Frequency433MHz
• SecurityAES-128 Encryption
• Range(Free Space)1.2Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life: 5 years in work status (being triggered 20 times per day)
• Power Supply: Battery Powered
• Battery Type: CR123A × 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension(WxHxD): 65.5mm × 103mm × 48.5mm
• Weight: 128g
• Mounting Height: 1.8 to 2.4m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
