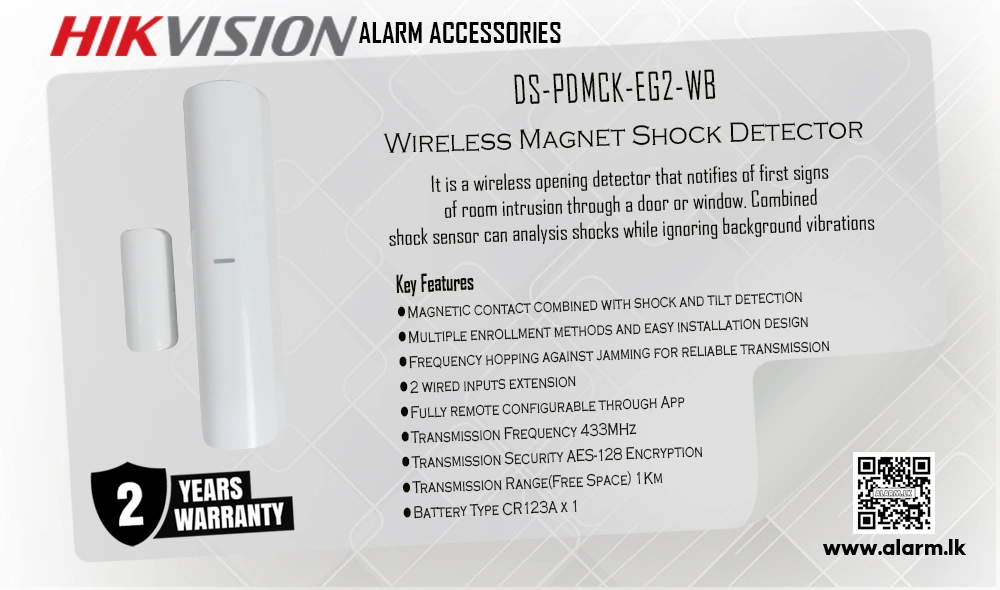

DS-PDMCK-EG2-WB

Datasheet: DS-PDMCK-EG2-WB

User Manual: DS-PDMCK-EG2-WB

Quick Start Guide: DS-PDMCK-EG2-WB

Specification

Detection Performance

• Detection Method: Opening Contact;Shock Sensor
• Detection Gap: 43mm Max
• Sensitivity
  • Shock Detection: High,Normal,Low
  • Tilt Detection: Up to 25°

Feature

• Digital Processing: Support
• Tamper Protection: Front;Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed;Normally Open;Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Green(MC),Orange(tilt),Red(shock),Blue(alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range(Free Space): 1Km
• Frequency Hopping: Support
• Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

• Standard Battery Life: Up to 3 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A x 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension(WxHxD)
  • 22.5mm × 103mm × 23.2mm
  • 13mm × 34.4mm × 11.4mm
• Weight: 60g
• Application Scenario: Indoor
